Connecting a bracket to a SENSE-4 gateway

Connecting a bracket to a SENSE-4 gateway

The following working instruction details how to fit a mounting bracket to a SENSE-4 gateway.

First, take the ½” M-F Adaptor with nut and rubber sealing washer. Remove the Nut and discard (nut shown below:)

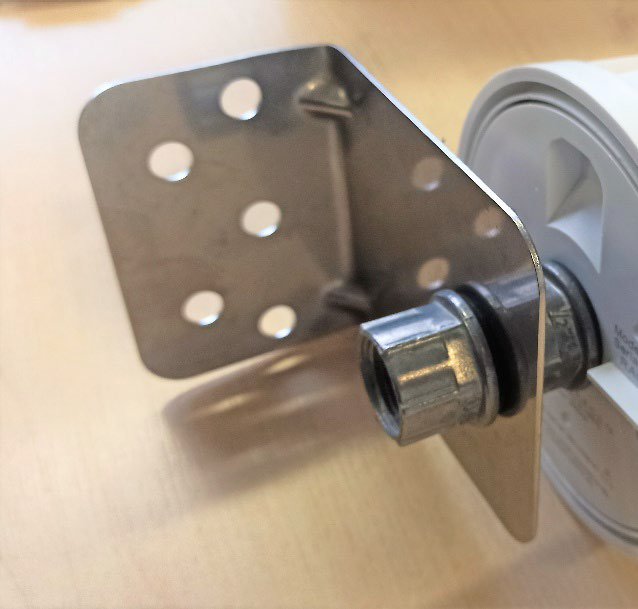

Insert the Male thread of the adaptor through the ½” hole on the bracket, and then into the ½” Female threaded hole on the gateway. Tighten using a 1” Spanner.

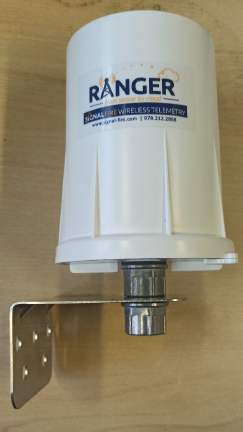

Ranger unit with bracket attached:


The cable gland supplied with the SENSE-4 kit can then be fitted to the M/F adapter and the cable connected as per the fitting instructions provided HERE
