Viewing data from a SENSE-4 kit in the SignalFire Cloud
Data from a SENSE-4 kit is sent to the SignalFire Cloud for viewing.
Before accessing the sensor data, you will need to have a SignalFire Cloud account access. Please contact Tan Delta for more information on setting up access by submitting a helpdesk Ticket HERE

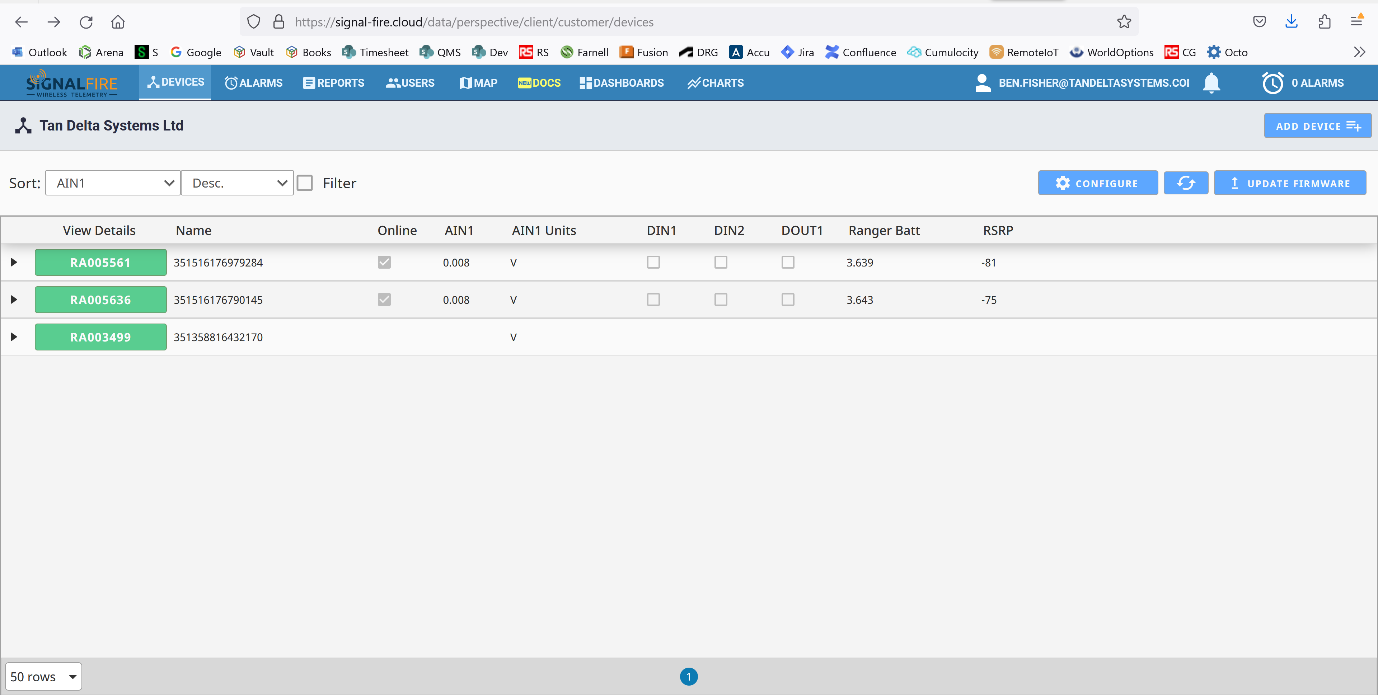

Login to your SignalFire Cloud account. You are presented with the following screen showing any SF Ranger units which have been ‘claimed’ (registered) on the cloud.

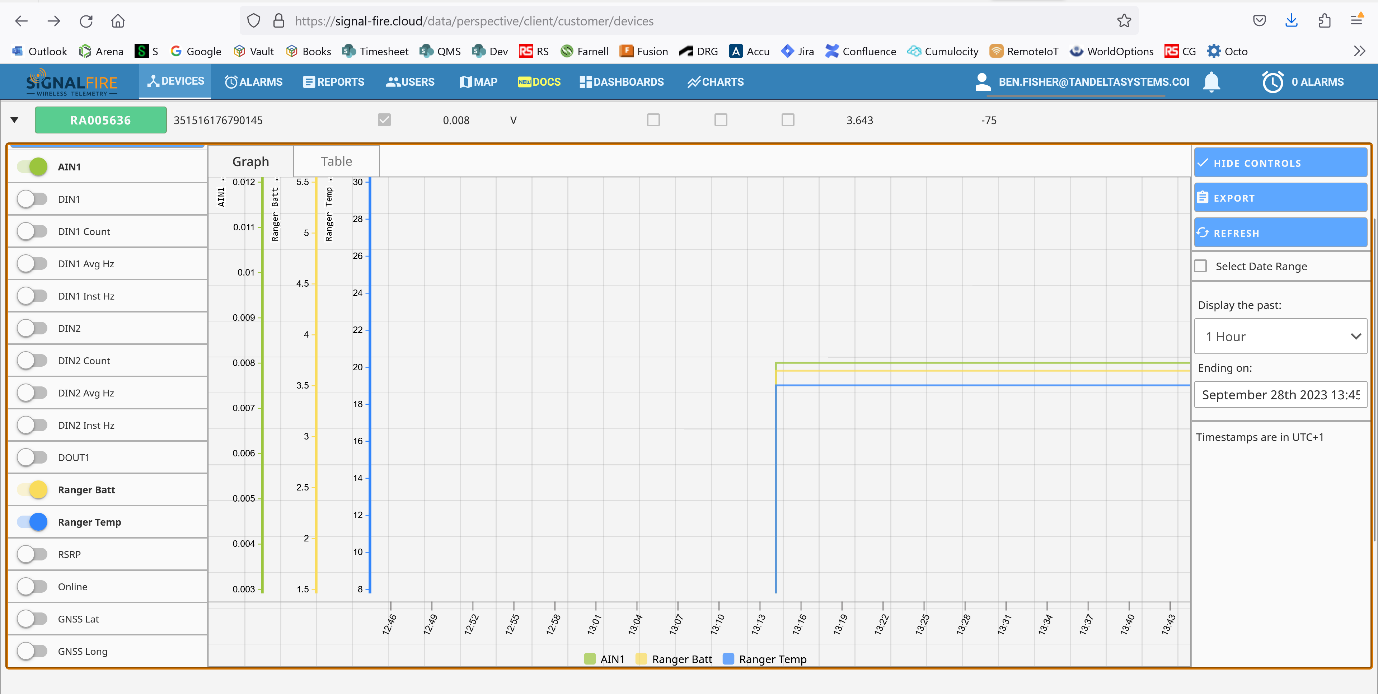

Single click on a device brings up the default graph shown below. NOTE: at this stage it may not contain Oil Condition or Oil Temperature.

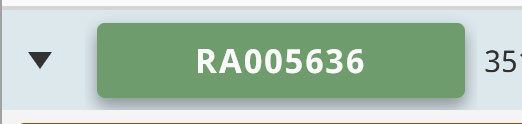

Click on the green button containing the Serial Number (example below):
This brings up the ‘dashboard’ for that device (shown below), which includes the Modbus Registers. This is where the Oil Condion and Oil Temperature can be found.

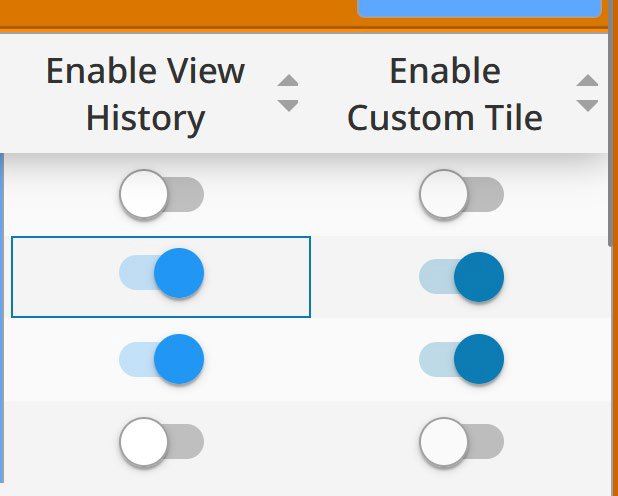

To add the Oil Condition and Oil Temperature to the Dashboard, switch on “Enable Custom Tile” on each register as shown below.
To add Oil Condion and Oil Temperature to the default Graph (from Step 2 above), switch on “Enable View History” on each register as shown below.
