Configurating a HAZ sensor for use in a SENSE-4 kit

Prior to use with a SENSE-4 kit, the HAZ sensor supplied must be configured for both the communication type and also the oil it is to be used in.

The sensor is configured using the Tan Delta CADS application and a HAZ configuration cable (Cable X), both supplied with the SENSE-4 kit.

HAZ sensor and Cable X

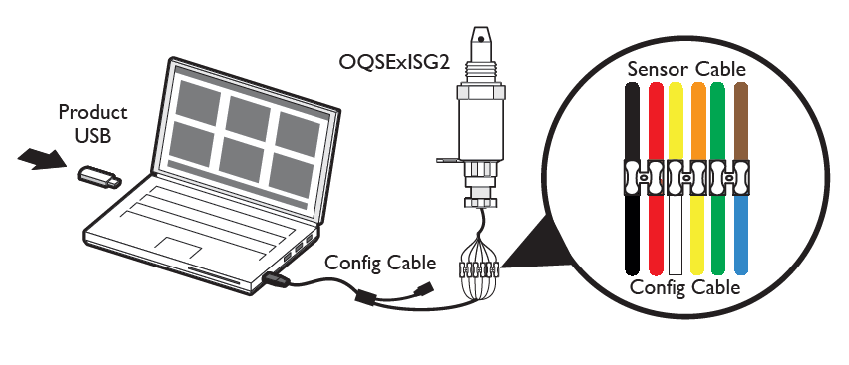

The sensor should be connected to the cable X using the following connections:

The sensor can then be configured using CADS as per the following steps:

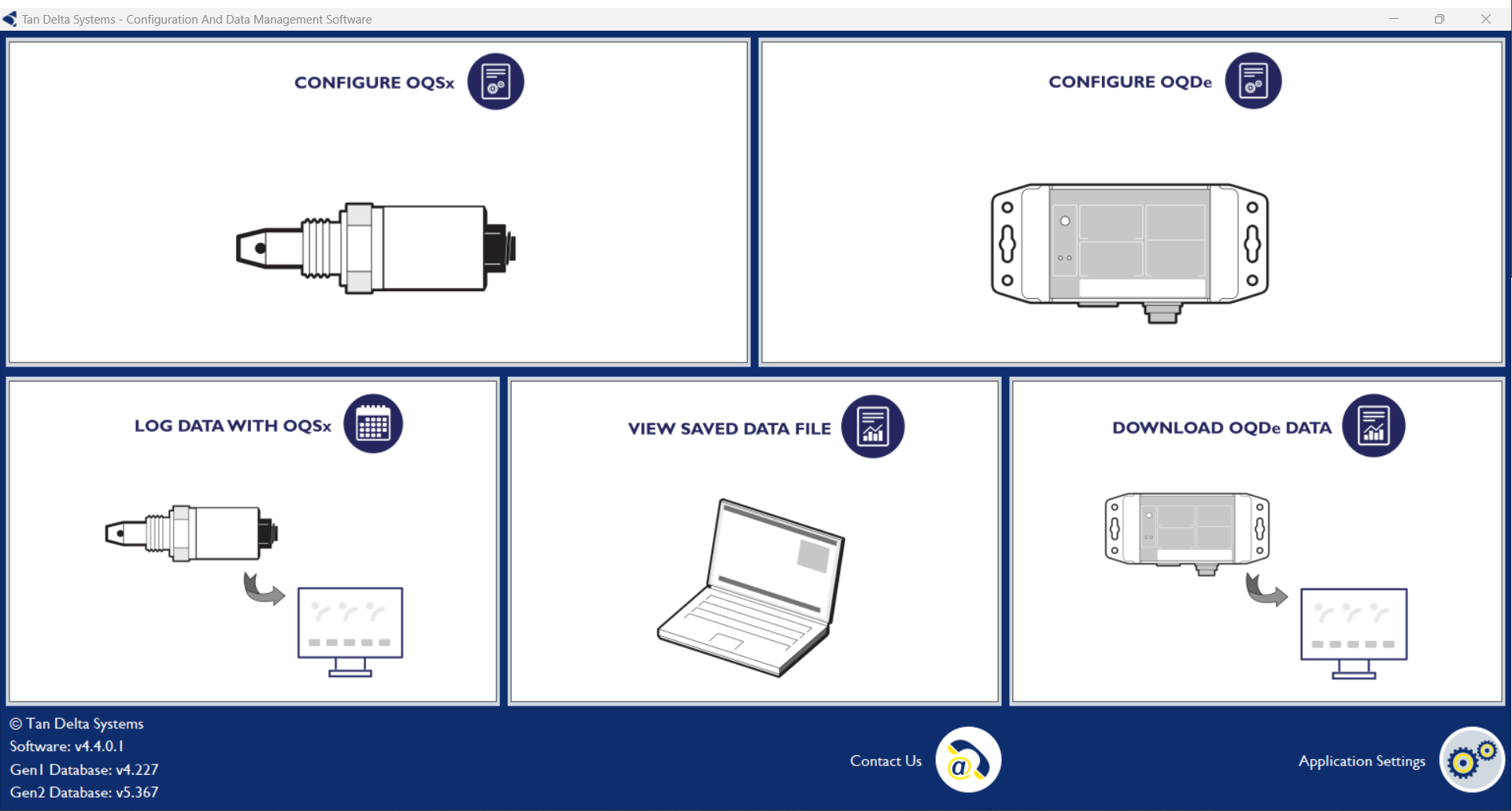

Select "Configure OQSx" from the home screen

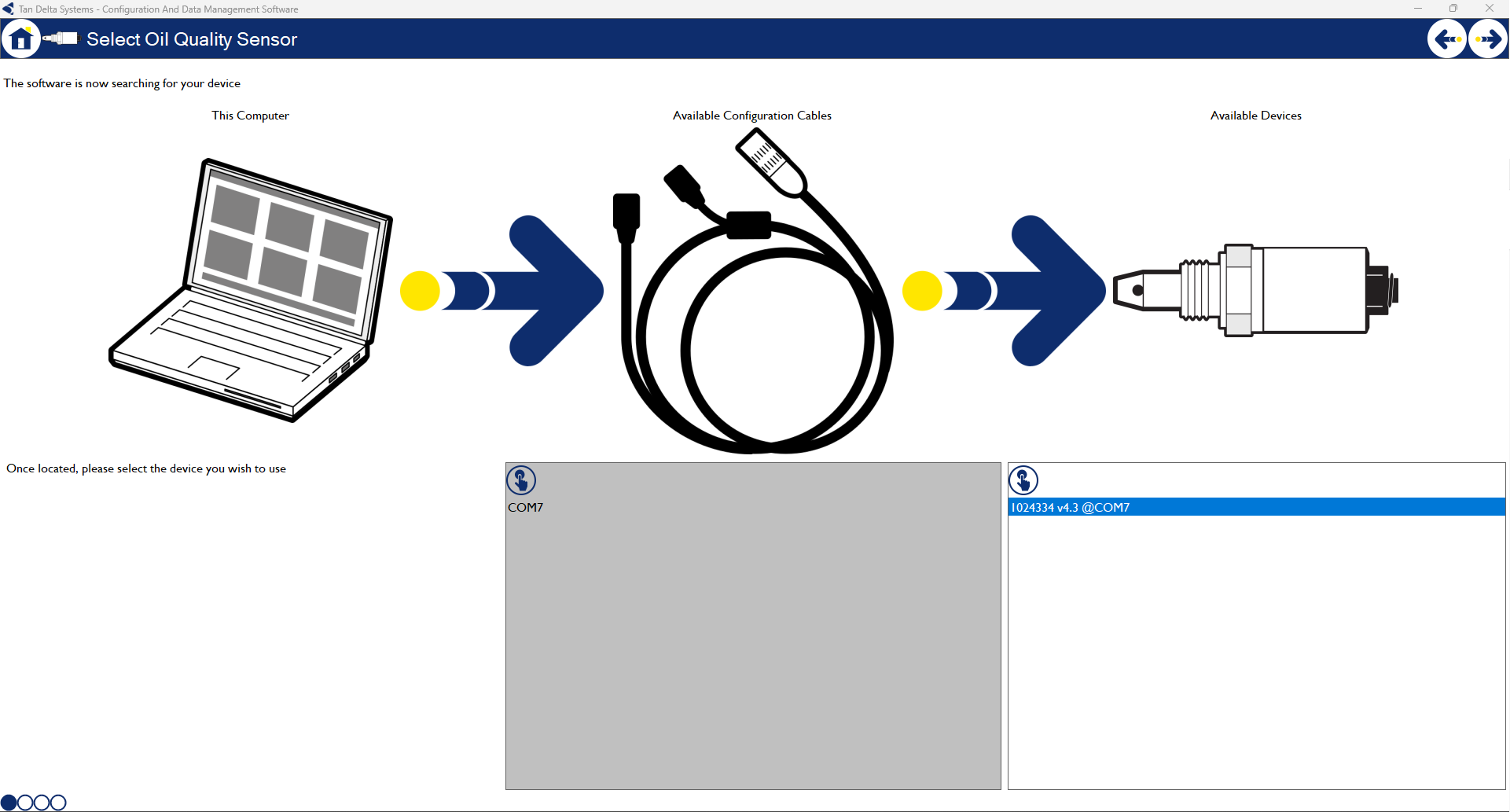

Connect sensor to PC using Cable X and select sensor to continue

Set communication type to Custom Communication Settings > Modbus RTU over RS485 > Node ID 1 > Bit Rate 9.600 kbps

Select the oil you are installing the sensor into from the database

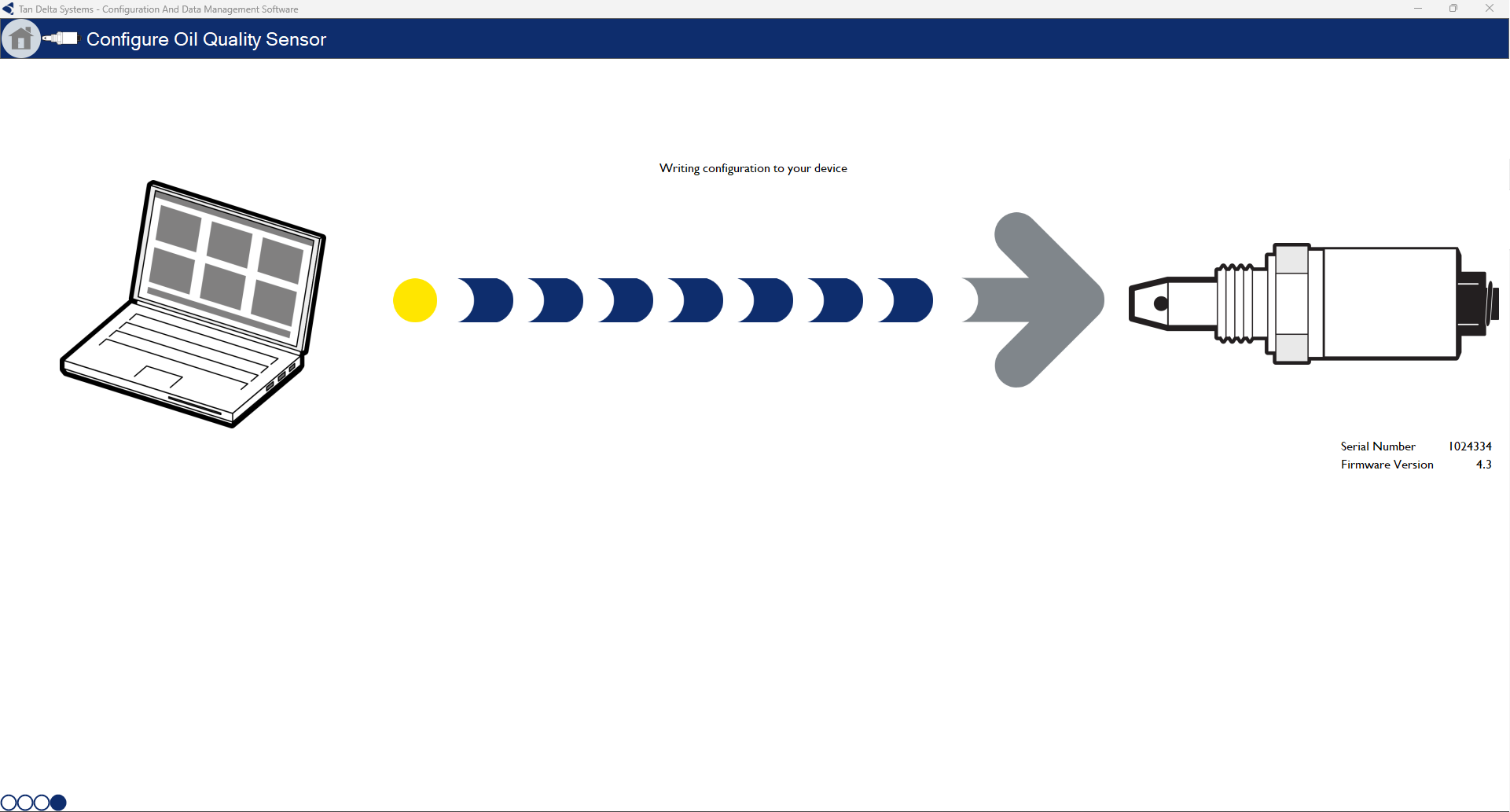

Upload settings to the sensor

The sensor is now configured and can be installed into the rest of the SENSE-4 kit.

Further information can be found HERE
