What is available on the 4-20mA analog output?
Both oil condition and oil temperature are available as 4-20mA analog outputs.

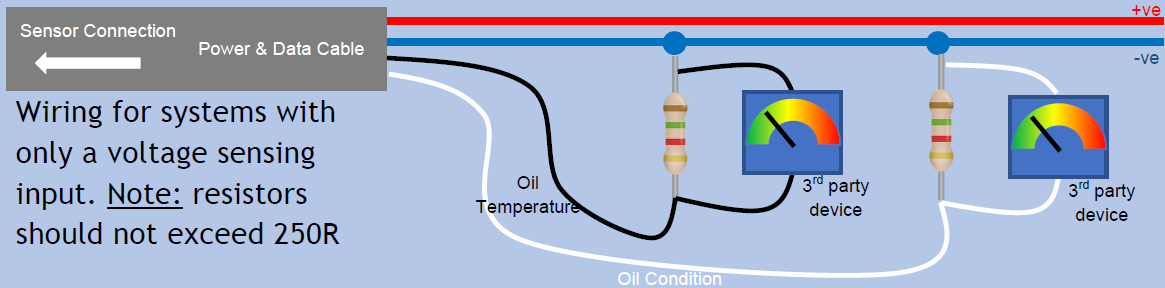

The analog outputs can be used with both 4-20mA current sensing input devices as well as voltage sensing input devices.
