What data does the sensor output?
The sensor reports a number that represents the overall oil condition at that moment in time. This is called "Tan Delta number" (TDN).
The sensor also outputs a value for oil temperature, which can be read in either degrees Celsius or in degrees Fahrenheit.
Any changes to the oil will have an effect on the overall condition and will therefore be picked up by the sensor.

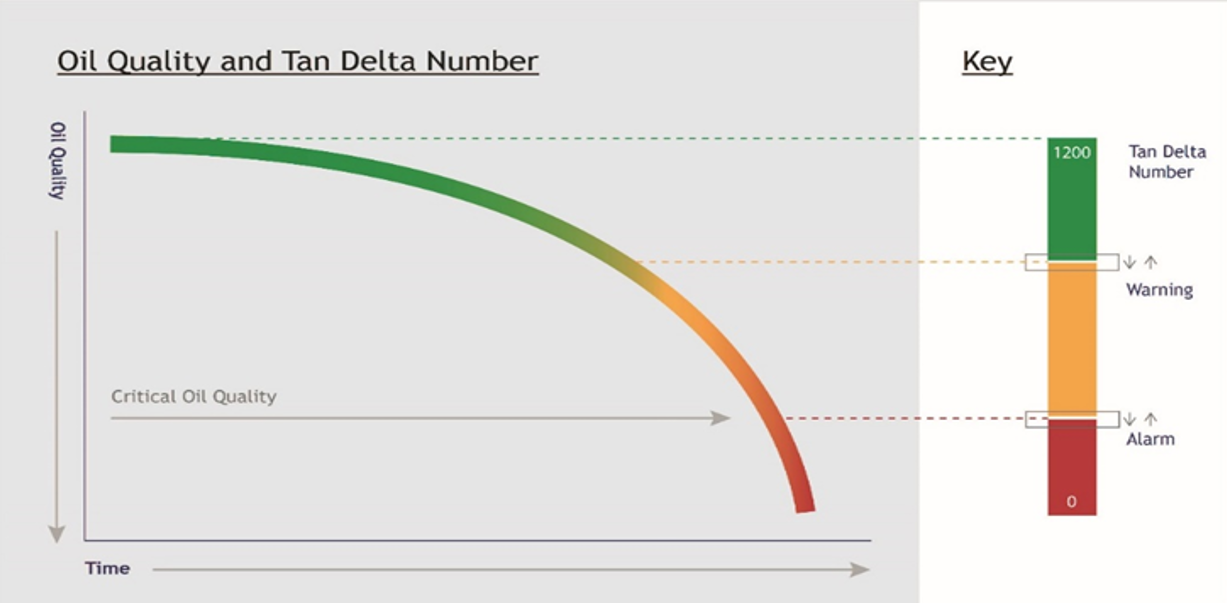

By monitoring this change in TDN value, you can trace the degradation of the oil until it is no longer fit for purpose, using the oil for more of its useable life, in most cases extending the service interval by at least 30%.
Continued monitoring of the sensor data output will also enable you to spot anomalies in the oil behaviour, alerting you to potential issues or breakdown of the asset, so you can pre-empt and prevent a catastrophic failure.
